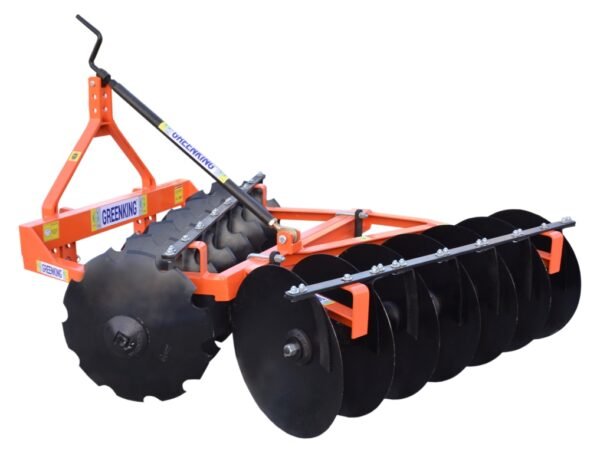

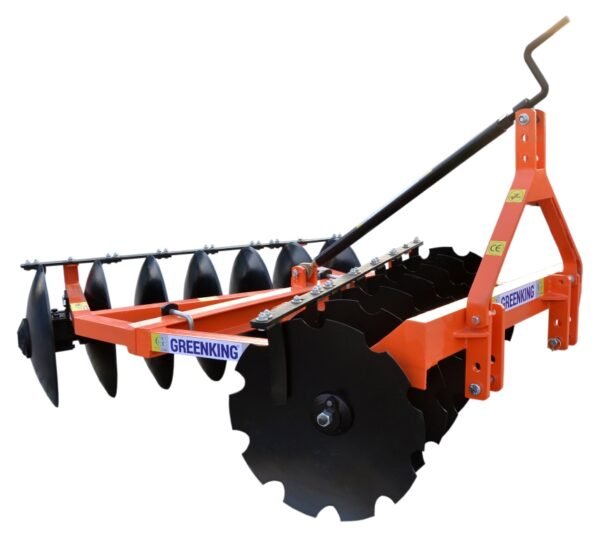

MOUNTED OFFSET DISC HARROW

Benefits:

  • Ideal for open-field operations such as superficial ploughing, clod shattering, soil preparation for sowing, and the burial of organic matter and crop residues.
  • Helps aerate the soil and eliminate weeds.
  • Effective in breaking up root systems.
  • Suitable for use even in hard soil conditions.

Features:

  • Sturdy design and substantial weight allow effective breaking of heavy clods.
  • Equipped with high-quality boron steel discs for enhanced durability.
  • Bearing spools ensure better lubrication and reduce load on the tractor.
  • Easily transportable with a tire-mounted design.
  • Easy to maintain, with regular scheduling recommended for optimal performance.

Description

Specifications:

Size 8×8 9×9 10×10 11×11
Frame 65X10 Angle and Front Support 125×62 65X10 Angle and Front Support 125×62 65X10 Angle and Front Support 125×62 65X10 Angle and Front Support 125×62
No. of Disc 14 16 18 20
Type of Disc Notched Disc in Front Gang & Plain Disc in Rear Gang Notched Disc in Front Gang & Plain Disc in Rear Gang Notched Disc in Front Gang & Plain Disc in Rear Gang Notched Disc in Front Gang & Plain Disc in Rear Gang
Distance between discs (mm) 228 228 228 228
Axle rod 30 mm (Solid Sq. rod) 30 mm (Solid Sq. rod) 30 mm (Solid Sq. rod) 30 mm (Solid Sq. rod)
Weight (kgs. (Approx.) 600 650 690 750

*The weight and working data contained in the present leaflet are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
