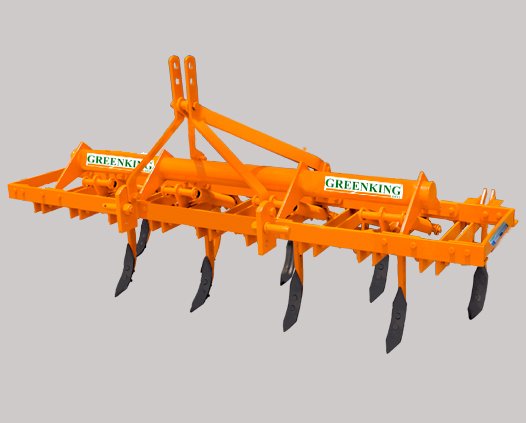

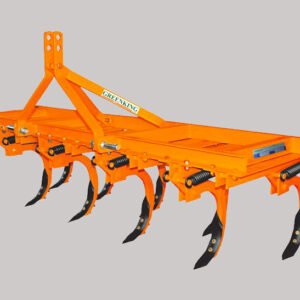

FORD CULTIVATOR

Features and Benefits:

  • Ideal for Challenging Soils: Engineered for effective performance in soils with stones, roots, and other obstructions.
  • Robust Design: Built to withstand the toughest field conditions and rigorous agricultural tasks.
  • Deep Soil Penetration: Efficiently loosens and aerates the soil up to a depth of 9 inches, enhancing root development and soil health.
  • Quick Seedbed Preparation: Enables fast and cost-effective preparation of seedbeds, saving time and fuel.
  • Independent Tyne Operation: Designed so that if one tyne hits an obstacle, the others continue to operate at the desired depth, ensuring uninterrupted performance.
Add to Wishlist
Category:

Description

Technical Specifications

No. of Tynes 9 11 13 15
Frame (mm) 75×10 Angle
Length (mm / Inch) 2190 (86″) 2647 (104″) 3104 (122″) 3561 (140″)
Width (mm / Inch) 940 (37″)
Tyne (mm / Inch) 50/2″ x 19T (Forged)
Spring (mm) WD 10 x OD 50 (26 Coils)
Shovel (mm) 8mm En-45
3 Point Linkage (mm) 65X16 & 50X12
Weight Approx (Kg) 245 305 360 415
