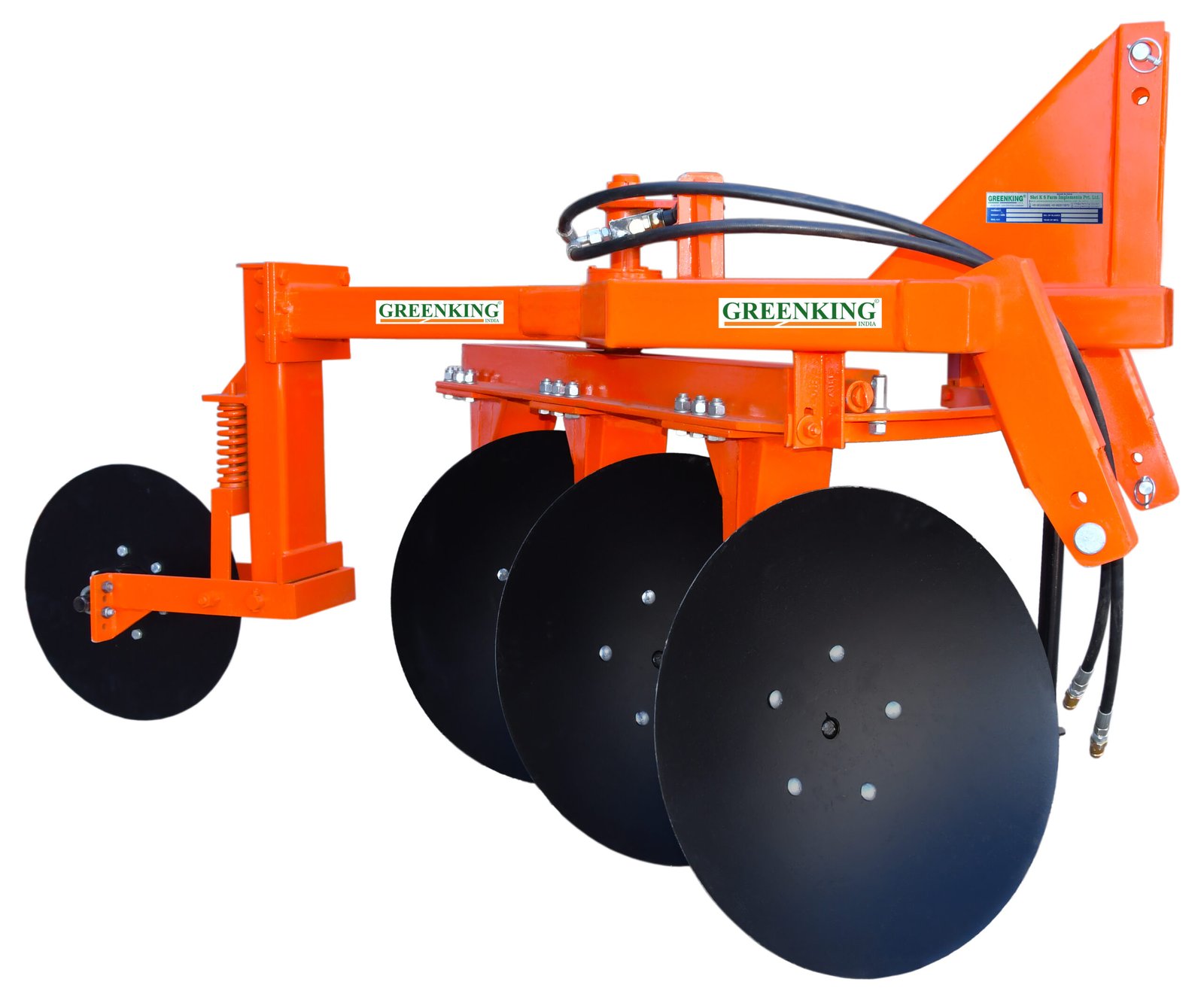

HYDRAULIC REVERSIBLE DISC PLOUGH

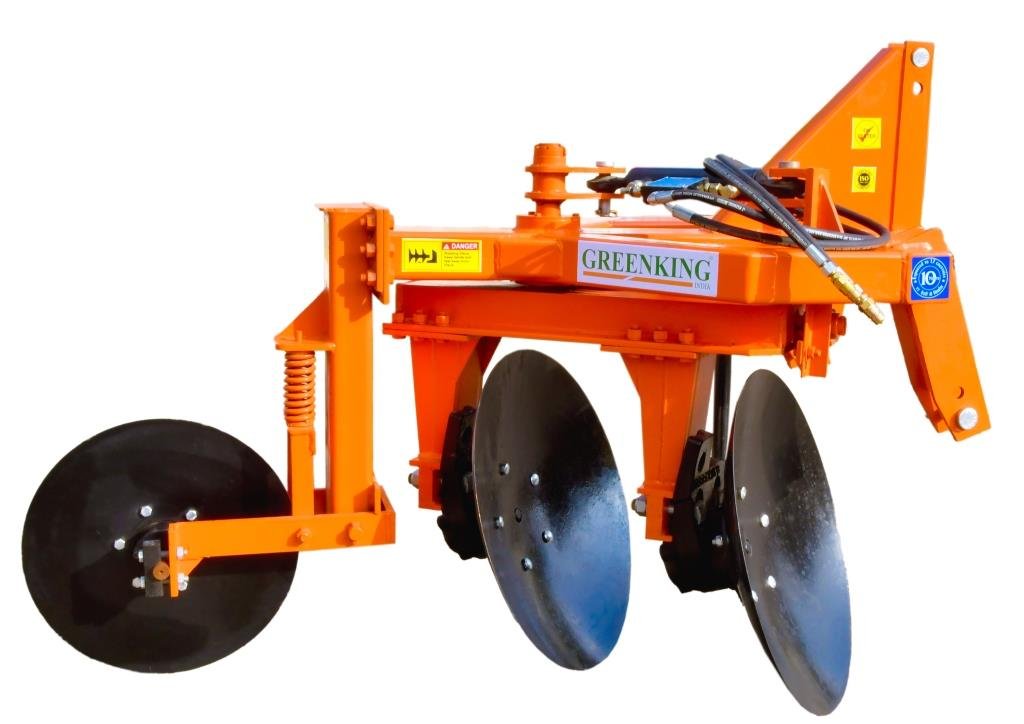

HYDRAULIC REVERSIBLE DISC PLOUGH - Image 2

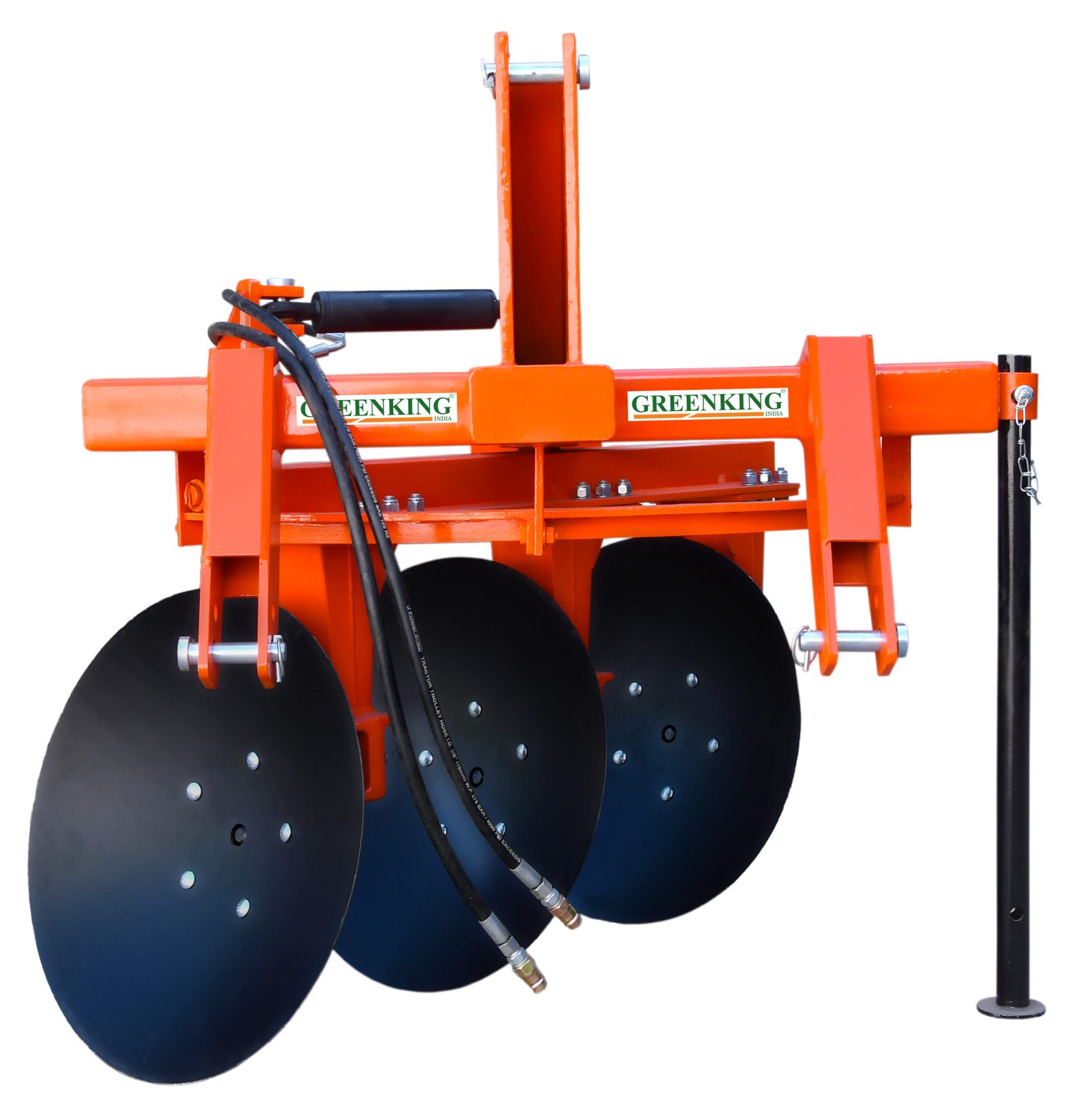

HYDRAULIC REVERSIBLE DISC PLOUGH - Image 3

HYDRAULIC REVERSIBLE DISC PLOUGH

BENEFITS

  • REVERSIBLE DISC PLOUGH can handle the toughest ploughing jobs.
  • For extremely hard ground and soil with large roots and other obstructions, one can obtain outstanding penetration performance.
  • For soft sticky ground and sandy soil, depth can be controlled through the built-in depth control.

FEATURES

The under frame and unit-to-unit clearances are adequate to cope with trashy conditions.

  • Perfect alignment of the sub-beams carrying the Disc bottoms is maintained by virtue of the frame construction.
  • An adjustable and spring-loaded furrow wheel tales care of the side draft and the implement moves smoothly.
  • Disc tilt angle can be varied in three stages to perform on various types of soils.
Add to Wishlist
Category:

Description

Specifications

Size2 Bottom3 Bottom4 Bottom
FrameSq. Tube 90x90x6TSq. Tube 90x90x6TSq. Tube 90x90x6T
Length1600 mm2200 mm2600 mm
Mounted CAT.CAT-IICAT-IICAT-II
Disc660x5T mm (26″)660x5T mm (26″)660x5T mm (26″)
Bearing Hubs234
Tractor Power (HP)35-5555-6565-75
Weight (kgs. (Approx.)330450610

*The weight and working data contained in the present leaflet are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
