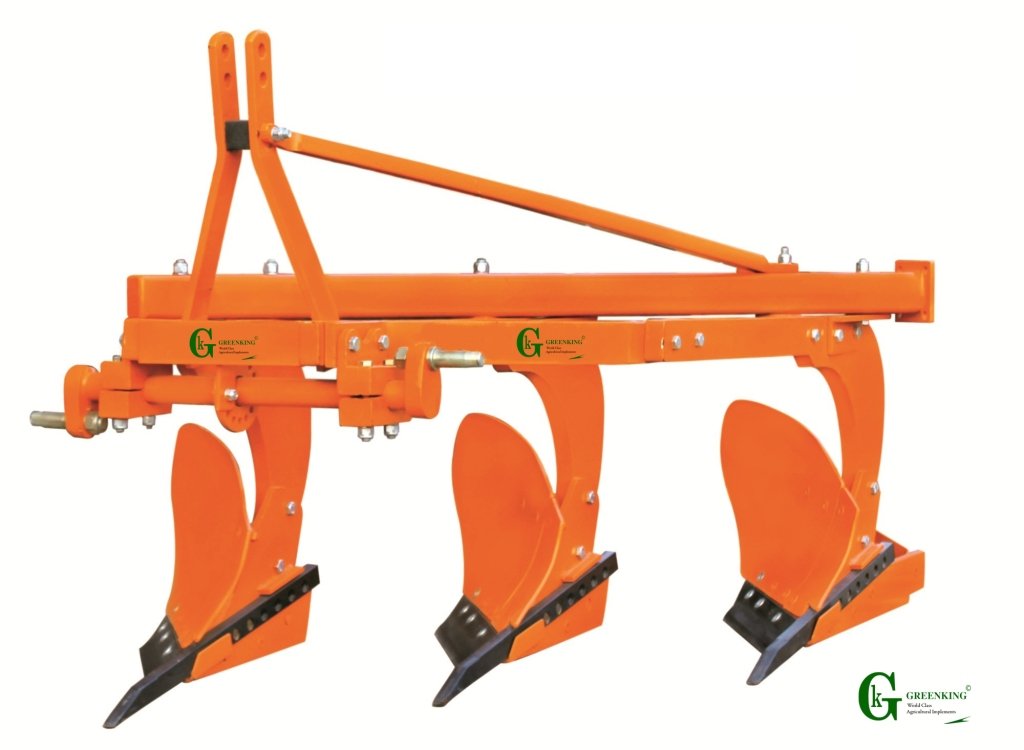

MOULD BOARD PLOUGH

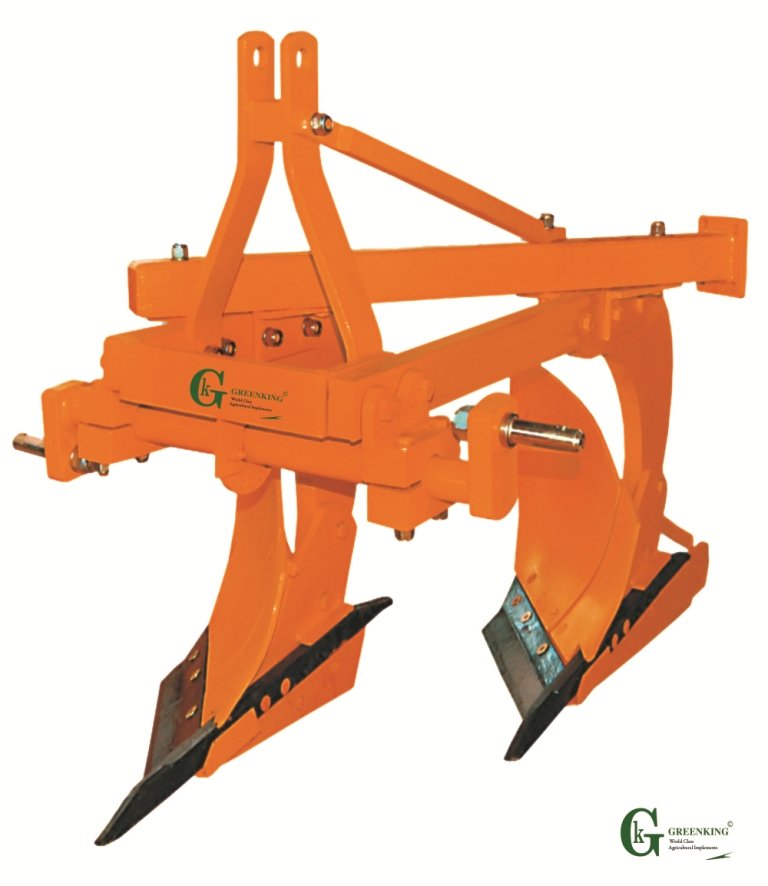

MOULD BOARD PLOUGH - Image 2

MOULD BOARD PLOUGH

BENEFITS

  • Efficient in Trashy Conditions: Generous under-frame and unit-to-unit clearance ensure smooth operation even in fields with heavy crop residue or trash.

  • Flexible Configuration: Additional furrows can be added or units easily repositioned to increase clearance, offering enhanced adaptability to field conditions.

  • Built for Tough Jobs: Equipped with a wear-resistant steel blade and reinforced bar points, designed to handle the most demanding ploughing tasks.

  • Longer Lifespan: Bar points are extendable and can be used until the very end of their life, reducing replacement frequency and cost.

  • Versatile Performance: Suitable for all soil types, it efficiently performs soil breaking, raising, and turning—ensuring optimal soil preparation for cultivation.

Add to Wishlist
Category:

Description

Specifications

Size 2 Furrow 3 Furrow 4 Furrow
Frame 80x80x7mm box 80x80x7mm box 80x80x7mm box
Tyne 36 mm profile cut single piece 36 mm profile cut single piece 36 mm profile cut single piece
Length 1300 mm 1880 mm 2460 mm
Width 738 mm 738 mm 738 mm
Height 1066 mm 1066 mm 1066 mm
3 pointed linkage 65 x 16 mm flat & 32 mm sq. 65 x 16 mm flat & 32 mm sq. 65 x 16 mm flat & 32 mm sq.
Clamp 125×50 mm 125×50 mm 125×50 mm
Width of cut 710 mm 1010 mm 1310 mm
Depth of cut 350 mm 350 mm 350 mm
Weight 235 350 435
Tractor power (HP) 40-50 50-60 60-70

*The weight and working data contained in the present leaflet are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
