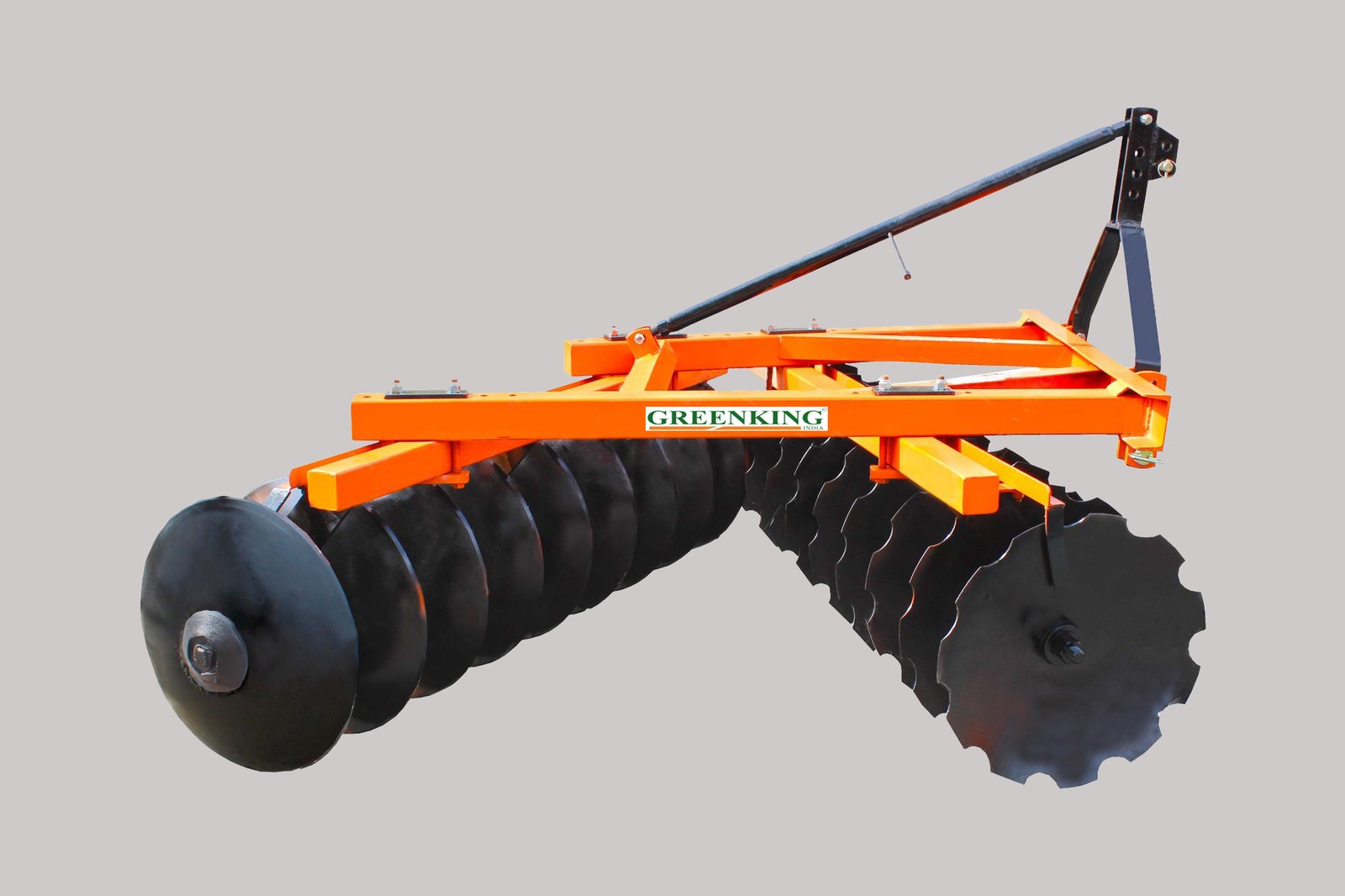

MOUNTED OFFSET DISC HARROW TYPE

MOUNTED OFFSET DISC HARROW TYPE

Benefits:

  • Ideal for open-field operations such as superficial ploughing, clod shattering, soil preparation for sowing, and the burial of organic matter and crop residues.
  • Helps aerate the soil and eliminate weeds.
  • Effective in breaking up root systems.
  • Suitable for use even in hard soil conditions.

Features:

  • Sturdy design and substantial weight allow effective breaking of heavy clods.
  • Equipped with high-quality boron steel discs for enhanced durability.
  • Bearing spools ensure better lubrication and reduce load on the tractor.
  • Easily transportable with a tire-mounted design.
  • Easy to maintain, with regular scheduling recommended for optimal performance.
Add to Wishlist
Category:

Description

Technical Specifications:

MODEL 12 14 16 18 20 22 24
FRAME 100X50 mm Channel ,80X80 mm  Square Tube 100X50 mm Channel ,80X80 mm  Square Tube 100X50 mm Channel ,80X80 mm  Square Tube 100X50 mm Channel ,80X80 mm  Square Tube 100X50 mm Channel ,80X80 mm  Square Tube 100X50 mm Channel ,80X80 mm  Square Tube 100X50 mm Channel ,80X80 mm  Square Tube
GANG AXLE 30 mm Solid Sq. Rod 30 mm Solid Sq. Rod 30 mm Solid Sq. Rod 30 mm Solid Sq. Rod 30 mm Solid Sq. Rod 30 mm Solid Sq. Rod 30 mm Solid Sq. Rod
NO. OF DISCS 12 14 16 18 20 22 24
TYPE OF DISCS Notched Disc in Front Gang & Plain Disc in Rear Gang Notched Disc in Front Gang & Plain Disc in Rear Gang Notched Disc in Front Gang & Plain Disc in Rear Gang Notched Disc in Front Gang & Plain Disc in Rear Gang Notched Disc in Front Gang & Plain Disc in Rear Gang Notched Disc in Front Gang & Plain Disc in Rear Gang Notched Disc in Front Gang & Plain Disc in Rear Gang
DISC DIAMETER 560 mm 560 mm 560 mm 560 mm 560 mm 560 mm 560 mm
DISC SPACING 228 mm 228 mm 228 mm 228 mm 228 mm 228 mm 228 mm
BEARING HUBS 4 Nos. 4 Nos. 6 Nos. 8 Nos. 8 Nos. 8 Nos. 8 Nos.
WORKING WIDTH 1420 mm 1635 mm 1852 mm 2068 mm 2285 mm 2502 mm 2718 mm
APPROX. WEIGHT 400 Kg. 440 Kg. 510 Kg. 585 Kg. 620 Kg. 680 Kg. 735 Kg.
REQUIRED TRACTOR 30 – 40 HP 40 – 50 HP 50 – 60 HP 60 – 70 HP 70 – 80 HP 80 – 90 HP 90 – 100 HP
