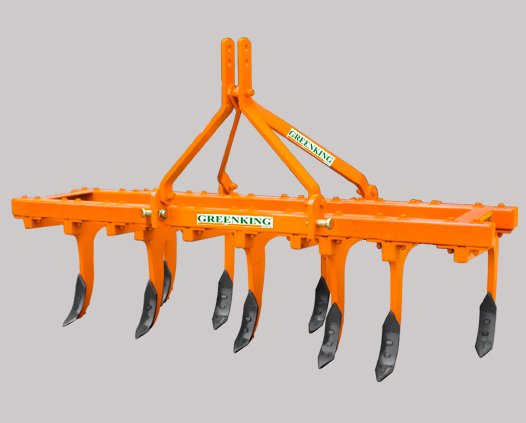

RIGID CULTIVATOR

RIGID CULTIVATOR

Features and Benefits:

Engineered for Tough Terrains: Specially designed to perform efficiently in the most demanding conditions, including hard black soils.
Robust Tyne Design: Profile-cut tynes are uniquely shaped to enhance strength and minimize stress at critical points, ensuring superior durability and resistance to deformation.
Heavy-Duty Frame Construction: Built with a sturdy tubular main frame that provides exceptional structural integrity and long-lasting performance.

Description

Technical Specifications

FRAME	80 x 80 mm Square Tube	80 x 80 mm Square Tube	80 x 80 mm Square Tube	80 x 80 mm Square Tube
NO. OF TYNES	9	11	13	15
TYNES	22 mm / 25 mm / 28 mm (Profile Cut, Single Piece)	22 mm / 25 mm / 28 mm (Profile Cut, Single Piece)	22 mm / 25 mm / 28 mm (Profile Cut, Single Piece)	22 mm / 25 mm / 28 mm (Profile Cut, Single Piece)
LENGTH	880 mm	880 mm	880 mm	880 mm
SHOVEL	8 mm Thick	8 mm Thick	8 mm Thick	8 mm Thick
3-POINT LINKAGE	65 x 16 mm & 50 x 16 mm	65 x 16 mm & 50 x 16 mm	65 x 16 mm & 50 x 16 mm	65 x 16 mm & 50 x 16 mm
TILLAGE WIDTH	1828 mm	2285 mm	2742 mm	3199 mm
DISTANCE BETWEEN TYNES	418 mm	418 mm	418 mm	418 mm
APPROX. WEIGHT	210 kg.	250 Kg.	290 Kg.	335 Kg.
REQUIRED TRACTOR	40 – 50 HP	55 – 65 HP	70 – 80 HP	80 – 95 HP
