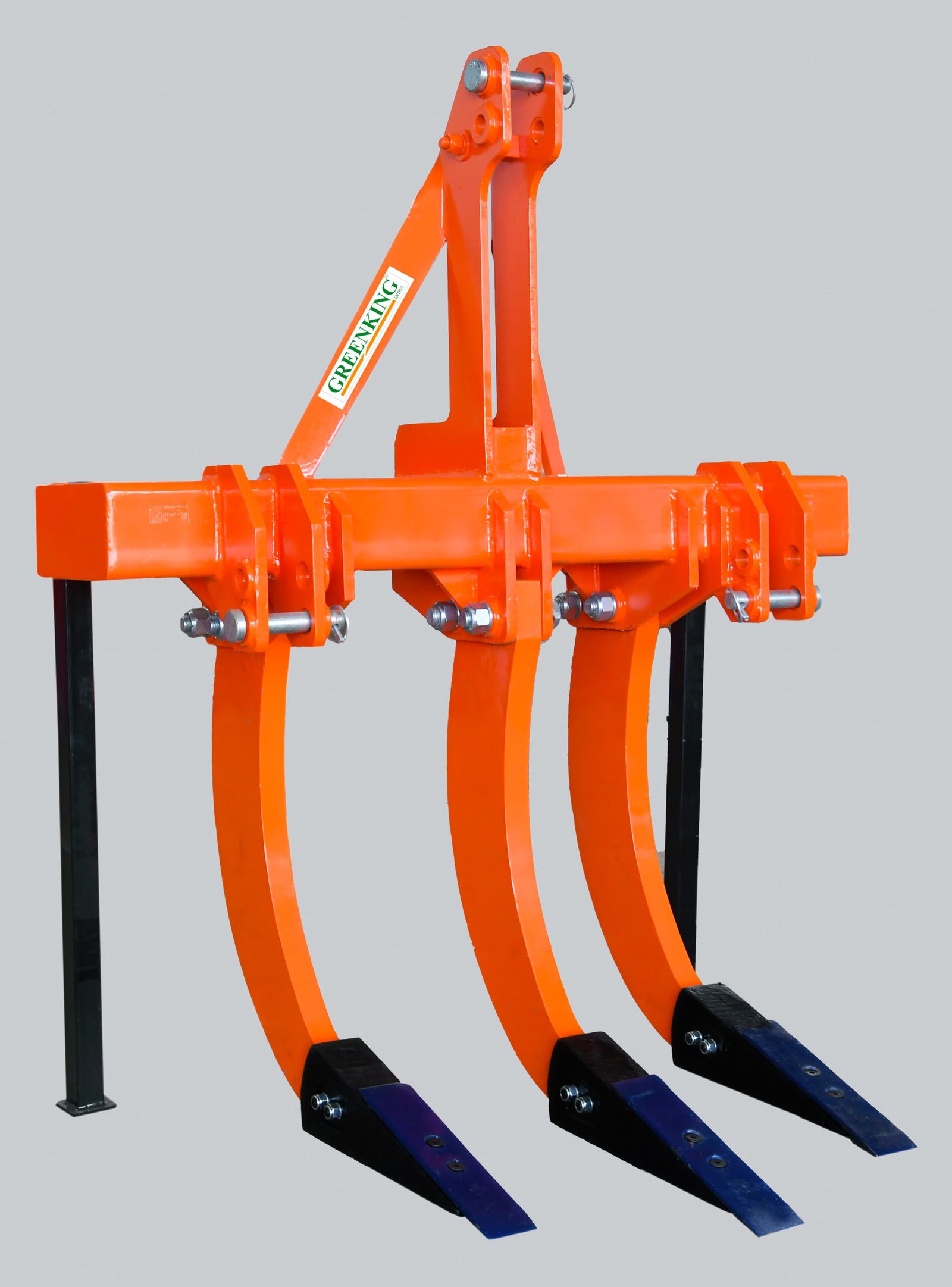

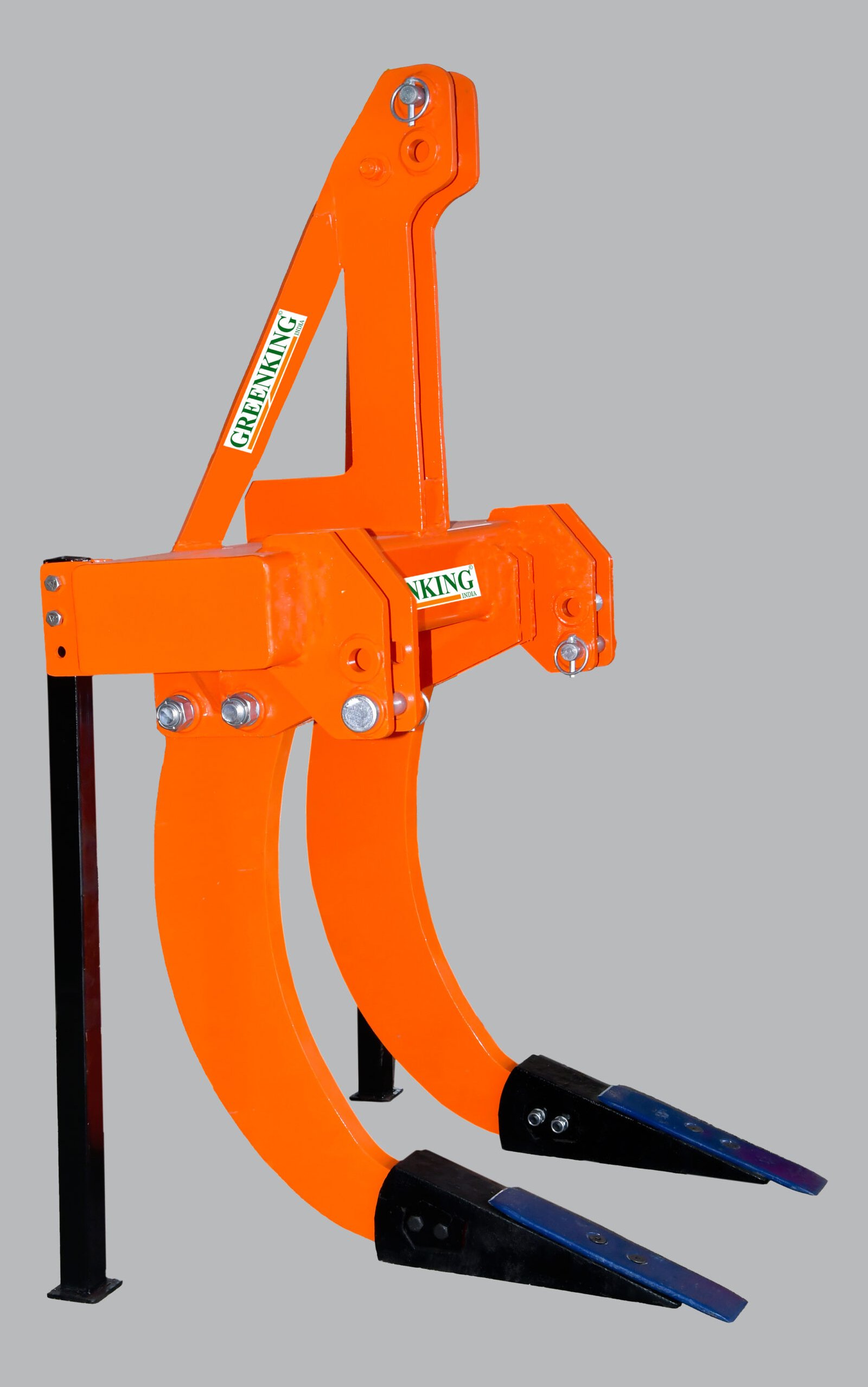

Sub Soiler

BENEFITS

GREENKING Sub Soiler are deep tillage implements specially designed for breaking up hard pan layers and loosening the Sub Soiler allowing betted drainage root growth and minerals osmosis

FEATURES

Optional wide range of roller/crumbler available which helps in breaking bigger lumps to stroller clods, Also it helps in depth control and steacy run of the Sob Soiler Adjustable depth & width of ploughing available for 2, 3 Tynes.
Optional pipe layer attachment avaiable for 1 arm sab soiler.
Depth can be adjusted by top links

Description
Reviews (0)

Description

Specifications

Size	1 Raw	2 Raw	3 Raw
Length	510 mm	510 mm	830 mm
Width	660 mm	1220 mm	1520 mm
Height	1060-1370 mm	1060-1370 mm	1060-1370 mm
Tillage width	70 mm	708-960 mm	1055-1284 mm
Tynes	150 x 36 mm	150 x 36 mm	150 x 36 mm
Distance between tynes	Not applicable	600-863 mm	465-575 mm
Working depth	550 mm	550 mm	550 mm
Approx. weight	135 kg.	195 kg.	280 kg.
Required tractor	40-45 HP	45-50 HP	55-60 HP

*The weight and working data contained in the present leaflet are supplied for information only and are not binding. Specification and size can be altered as part of ongoing product modification/improvement.
